SuperBit Expansion Board

The SupterBit is a very powerful expansion board. It comes with a rechargeable battery. It is very convenient to connect motors, servos, speakers, and LED lights.

The extension board is designed with bilateral symmetry, meaning that if the board was divided in half, the left and right sides of the board would be similar. Onboard the micro:bit expansion board is a board socket, 18650 battery socket, USB power supply interface, 3-5v external power interface, 4 programmable RGB lights, buzzer, I2C interface, WIFI camera serial port, all kinds of motor interfaces, and so on. It also can be connected to 2 channel stepper motors, 4 channel DC motors, and 8 channel servos. Coupled with a stable power supply scheme and various protection circuits, this expansion board has a powerful ability to drive motors. We can expand 17 pin header IO ports and 10 alligator clip interfaces to support our sensor modules. The WIFI camera serial interface, IIC interface, and LEGO holes make it possible for users to expand into more interesting projects. You can build your own shape with the LEGO bricks, connect electronic devices, and control it using micro:bit programming, which is why the micro:bit is an excellent choice for your robotic projects!

Remember to charge the SuperBit first

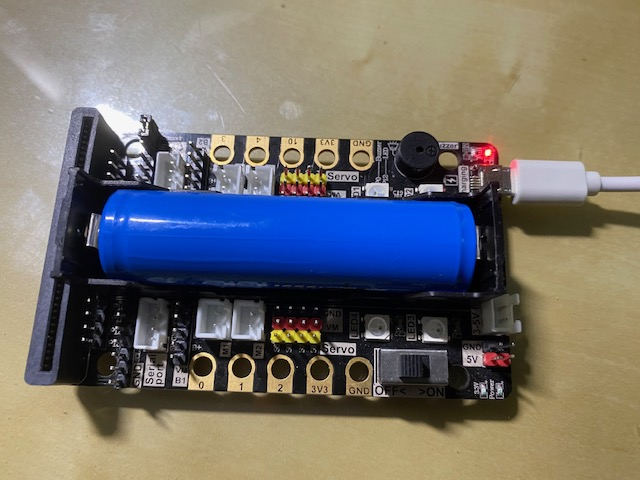

SuperBit has a rechargeable battery, charge it with a usb cable.

Note: you cannot use the charging port to upload program.

Plug in the Micro:bit

Insert the Microbit with the correct orientation (Microbit LED face front)

Micro:bit Pin Map

With Expansion board, you cannot use pin P0, P12, P15, P16, P19, and P20. They are already pre-assigned to Superbit devices.
